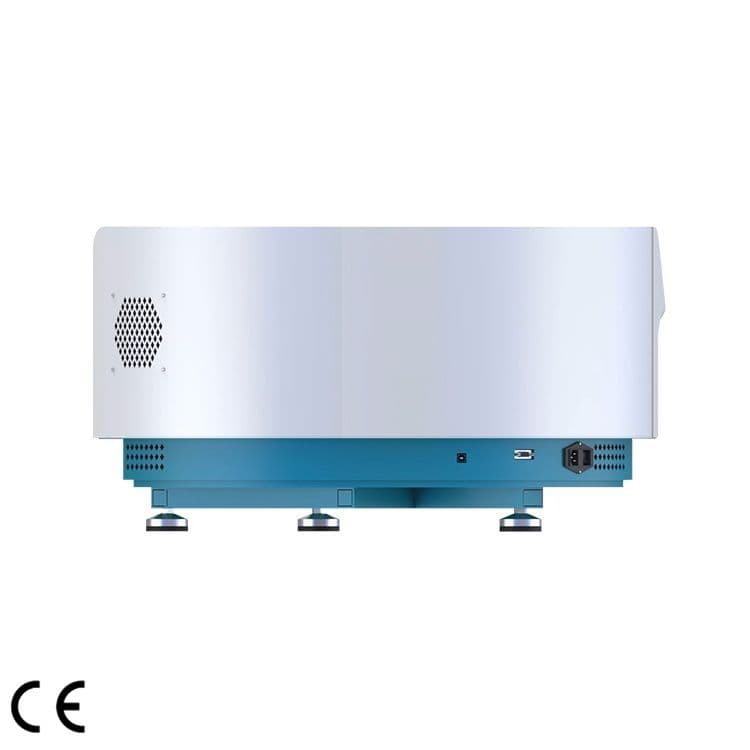

Nucleic Acid Extractor, Automatic, NAE-0196
Infitek
- High throughput：1-96
- Huge kit portfolio
- Prefilled 96-well plates
- Easy to set up and run
- No cross contamination
- Flexibility of input volume：20μl-5ml
Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.
| Brand | Infitek |
|---|---|
| Category | Molecular Biology & PCR |
| Model | NAE-0196 |
| Sample throughput | 96 |
| Sample volume | NAE-0196 |
| Temperature control | 10 -99℃ |
| Magnetic beads recovery rate | >99.5% |
| Oscillating mixing | Multi-mode and multi-speed adjustable, the amplitude can be automatically adjusted according to the liquid volume |
| Power | 100—240 Vac, 50/60 Hz |
| Data storage | Store>500 groups of programs |
| Operation interface | 7″ 870 xl 550 Color screen, free switch between Chinese and English Interface |
| Power-off protection | Yes |
| Power control | Servo motor |
| Oscillating technology | Super Vibrate |
| Computer interface | RS232 |
| Operating temperature range | 5-40℃ |
| Operating humidity range | Below 80% |
| Weight | 45kg |
| Size | 685mm x 840mm x420mm |
| UV lamp | Yes |
| Datasheet | Available on request |
Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
