Category:Molecular Biology & PCR

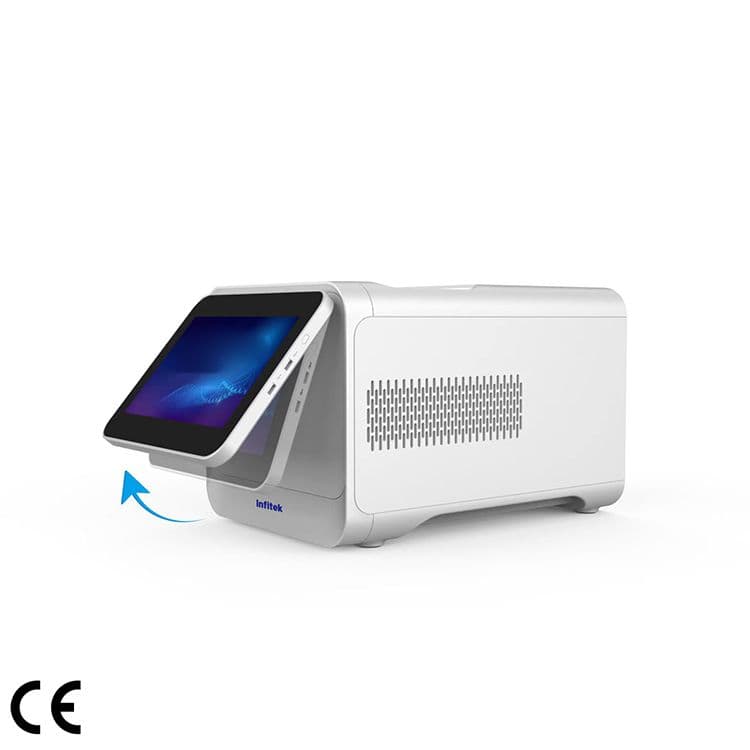

Real-time PCR System, PCR-Q96-6P
Infitek
- Reaction Volume: 10~100μL
- Temperature Range: 0~100°C (Resolution: 0.1°C)
- Ramp Rate: 8.0°C/s
- Temperature Control: Block/Tube
- Sample Capacity: 96-well plate, 12*8 strips, 96*0.2ml single tubes
Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.
| Brand | Infitek |
|---|---|
| Category | Molecular Biology & PCR |
| Model | PCR-Q96-6P |
| Sample Capacity | 96-well plate, 12*8 strips, 96*0.2ml single tubes |
| Consumables | 0.1/0.2ml tubes, 0.1/0.2ml 8-tube strips, 0.1/0.2ml skirtless and semi-skirted 96-well plates (0.2 ml recommended) |
| Reaction Volume | 10~100μL |
| Temperature Range | 0~100°C (Resolution: 0.1°C) |
| Max. Ramp Rate | 8.0°C/s |
| Temp. Control Accuracy | ±0.1°C |
| Uniformity | ±0.20°C |
| Accuracy | ±0.20°C |
| Gradient Spread | 0.1~42°C |
| Hot Lid Temperature | 30~115°C (Adjustable, default 105°C) |
| Lid Operation | Automatic hot lid |
| Temperature Control | Block/Tube |
| Excitation Wavelength | 300nm~810nm |
| Emission Wavelength | 500nm~810nm |
| Detection Channels | 6 channels |
| Detection Method | Simultaneous scanning of all channels |
| Scan Period | 5 seconds for full 96-well scan |
| Datasheet | Available on request |
Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
