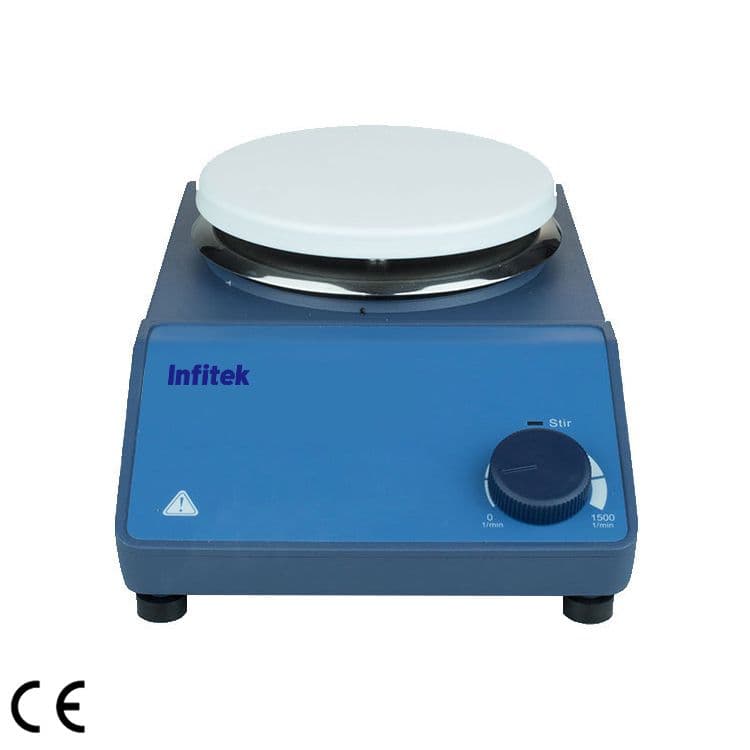

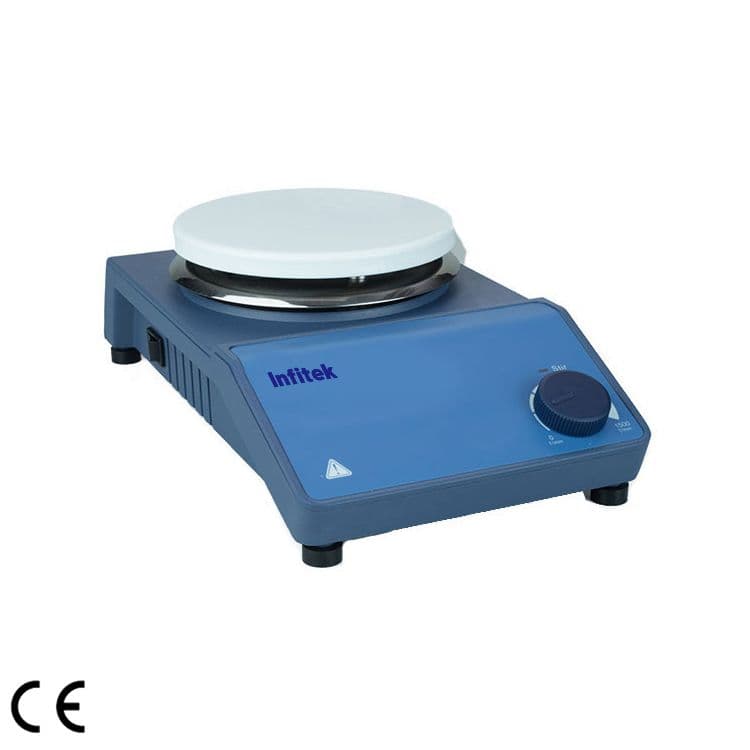

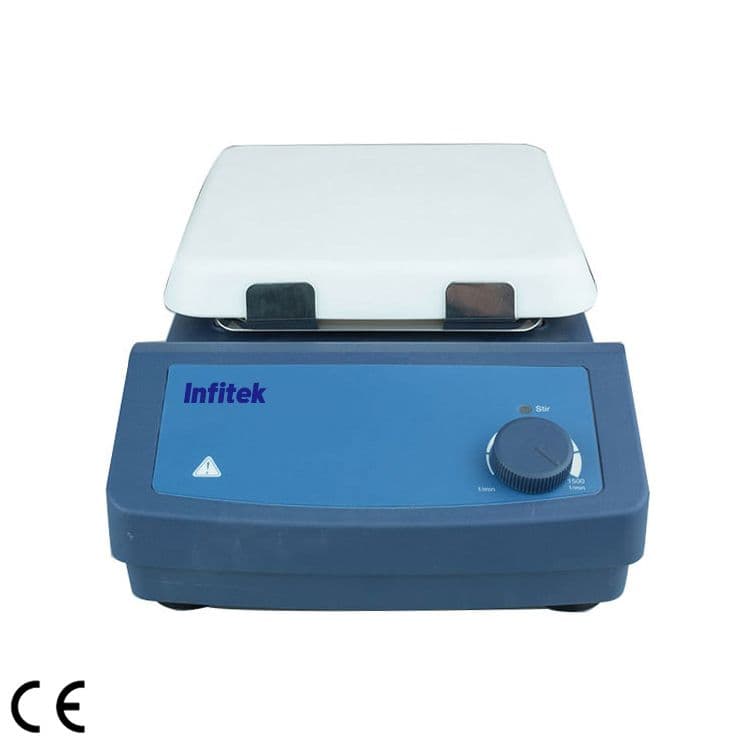

Magnetic Stirrer, MGS Series

Infitek

Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.

Technical parameters
Brand	Infitek
Category	Mixing & Shaking
Specifications	MGS-1C / MGS-7S / MGS-6P
Work plate dimension [W×H]	φ 135mm (5 inch) / 184×184mm (7 inch) / 140 ×140mm
Work plate material	Stainless steel cover with ceramic / Glass ceramic / Aluminum cover with ceramic
Motor type	Brushless DC motor / Shaded pole motor
Stirring positions	1
Max. stirring quantity [H 2 O]	20L / 10L / 5L
Max. magnetic bar [length]	80mm / 40mm
Speed range	0-1500rpm / 200-1500rpm
Speed display	Scale / LCD
Protection class	IP21
Motor input power	18W / 15W / 2.4W
Motor output power	10W / 1.5W / 1.8W
Power	30W / 10W
Voltage	100-240V, 50/60Hz / 100-120/200-240V, 50/60Hz
Dimension [W×D×H]	160×280×85mm / 215×360×112mm / 320×180×108mm
Package Dimension[W×D×H]	270×500×280mm / 460380170mm / /
N.W.	2.8kg / 3.8kg / 2.2kg
G.W.	3.6kg / 7.6kg / /
Datasheet	Available on request

Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
