Category:Molecular Biology & PCR

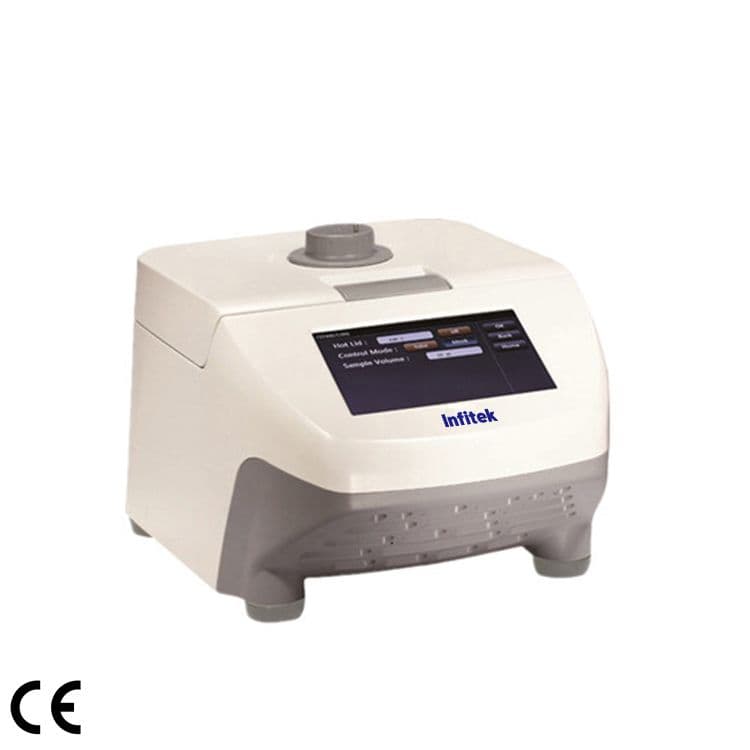

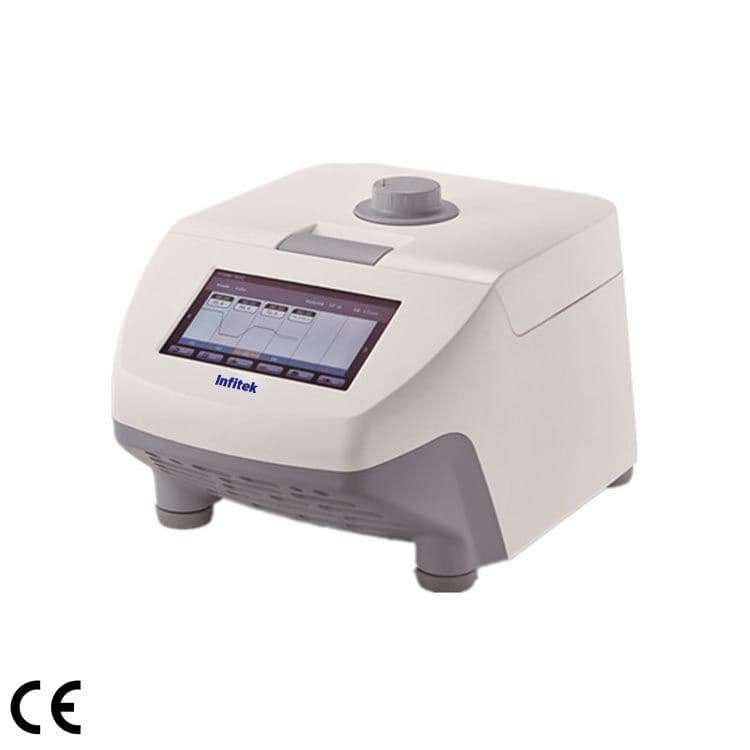

Gradient PCR Machine, PCRTC-GP
Infitek
- Gradient type
- Sample Capacity: 96 well
- Max. Heating/Cooling rate: 5℃/Sec
- Temperature uniformity: ±0.2℃ at 55℃
- 7 inch Large color touch panel screen
- High performance DSP and temperature control
Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.
| Brand | Infitek |
|---|---|
| Category | Molecular Biology & PCR |
| Specifications | PCRTC-GP |
| Sample Capacity | 96×0.2mL PCR tube | 12×0.2mL PCR-8 strips | 1×0.2mL 96-well PCR plate |
| Heating Temperature Range | 0-105℃ |
| Lid Temperature Range | 30-115℃ |
| Temperature Display Accuracy | ±0.1℃ |
| Temperature Control Accuracy | ±0.1℃ |
| Temperature uniformity[at 55℃] | ±0.2℃ |
| Max. Heating/Cooling Rate | 5℃/Sec |
| Gradient Temperature Setting Range | 30-105℃ |
| Gradient Range | 1-42℃，Turn off gradient on input 0 |
| Adapter block material | Aluminum |
| Display | 7″ LCD 1024×600 |
| Input | Touch panel |
| Communication interface | USB/Wifi |
| Number of program storage | 20000+（USB FLASH） |
| User defined file system | Up to 30 steps and 99 cycles in a single program |
| Power off protection | Yes |
| Power Supply | 100~120V/200~240V，50/60Hz 600W |
| Datasheet | Available on request |
Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
