Category:Molecular Biology & PCR

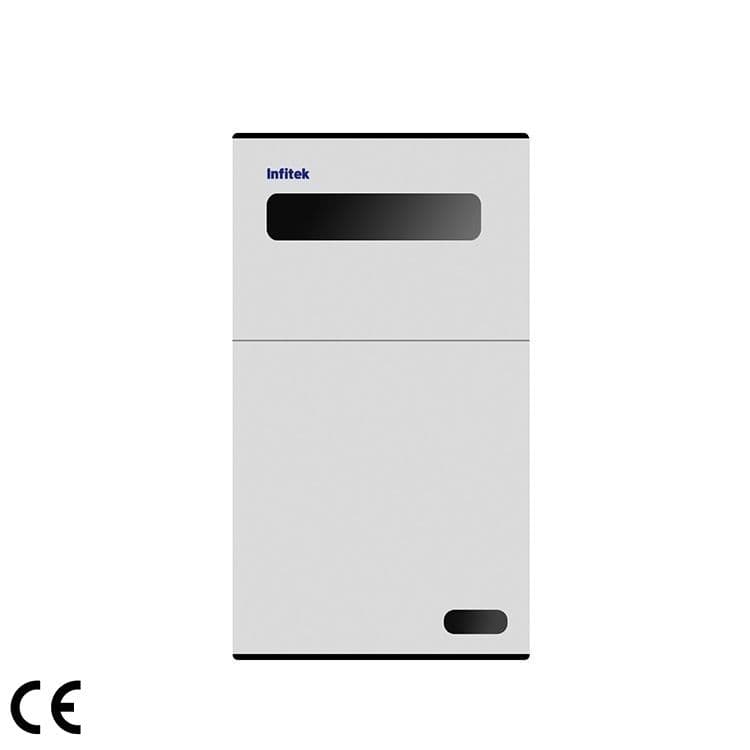

Fully Automatic Multifunctional Gel Imaging System, GEP-GD900MF
Infitek
- High QE: >95%
- Pixel Size: 4.63μm×4.63μm
- Exposure: 1ms-60min
- Bit: 16 bit (0-65535)
Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.
| Brand | Infitek |
|---|---|
| Category | Molecular Biology & PCR |
| Model | GEP-GD900MF |
| Pixel | 12MP |
| QE | High QE: >95% |
| Pixel Size | 4.63μm×4.63μm |
| Binning | 1×1, 2×2, 3×3, 4×4···8×8 |
| Exposure | 1ms-60min |
| Cooling Temperature | -65℃ |
| Bit | 16 bit (0-65535) |
| OD | ≥4.8OD |
| Electric Lens | F0.95 autofocus lens, optional F0.8 autofocus lens |
| RGB illumination | Standard LED 470nm, 520nm, 650nm (others optional) |
| UV Transmission | UV 302+365nm, Area:21*21cm |
| White Light Source | Double layer LED reflection on top and bottom, |
| UV Reflection | 254nm , optional 302nm , 365nm |
| Filter Wheel | 5-position filter wheel standard (others optional) |
| Filter Lens | Standard 535nm, 590nm, 605nm, 699nm，Optional 720nm, 820nm |
| Imaging Area | 28*21cm |
| Timed Shutdown | 1 ~ 60min |
| Datasheet | Available on request |
Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
