Category:Ovens, Furnaces & Baths

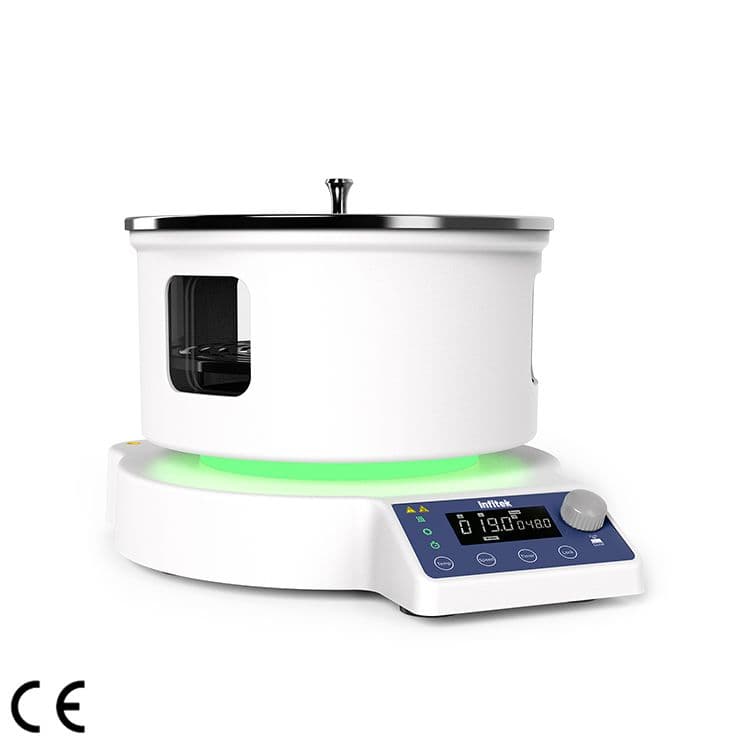

Thermostatic Magnetic Stirring Bath, WB-H220 Series
Infitek
- Stirring Quantity [H₂O]: 3L, 5L
- Magnetic Bar Length: 40mm
- Speed Range: 100–1500 rpm, ±10 rpm
- Heating Temperature Range: RT–220°C
Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.
| Brand | Infitek |
|---|---|
| Category | Ovens, Furnaces & Baths |
| Model | WB-H220-V3 / WB-H220-V5 |
| Heating Pan Material | High borosilicate glass + stainless steel base |
| Motor Type | Brushless DC motor |
| Bath Size | Ø220×105 mm / Ø240×135 mm |
| Max. Flask Volume | 3 L / 5 L |
| Stirring Positions | 1 |
| Max. Stirring Quantity [H₂O] | 3 L / 5 L |
| Max. Magnetic Bar Length | 40 mm |
| Speed Range | 100–1500 rpm, ±10 rpm |
| Speed Display | LCD |
| Temperature Display | LCD |
| Heating Temperature Range | RT–220°C |
| Heating Liquid Temperature Control Accuracy | ±1°C |
| Overheat Protection | 350°C |
| Temperature Display Accuracy | 0.1 °C |
| External Temperature Sensor | PT1000 |
| Residual Heat Warning (“HOT”) | 50 °C |
| Buzzer | Yes |
| Datasheet | Available on request |
Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
