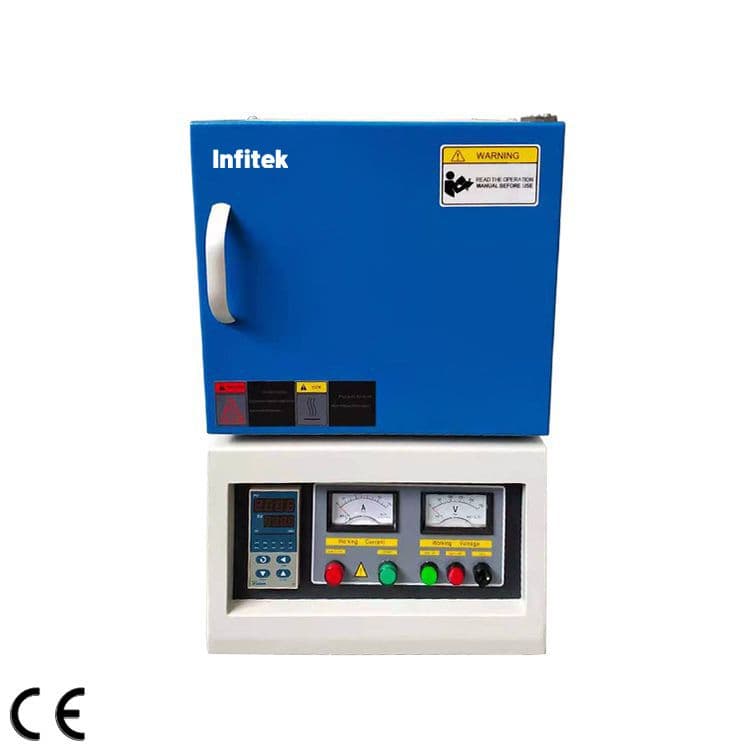

Muffle Furnace, 1400℃ High Temp, Box Type, FNC-BX1400 Series
Category:Ovens, Furnaces & Baths

Muffle Furnace, 1400℃ High Temp, Box Type, FNC-BX1400 Series

Infitek

  • Max. Temp.: 1400℃
  • Continuous working temp: ≤1300℃
  • Thermal couple: S type
  • Heating element: SIC heating rod

Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.

Request a quote
WhatsAppViberCall
Technical parameters
BrandInfitek
CategoryOvens, Furnaces & Baths
ModelFNC-BX1400-2 / FNC-BX1400-4 / FNC-BX1400-9 / FNC-BX1400-16
TemperatureMax. Temp(℃) / 1400
Continuous Working Temp.(℃)≤1300
Heating Rate0~30℃/min, suggest to be 10℃/min;
Accuracy(℃)±1℃
Uniformity(℃)±5℃
Chamber Dimension(W*D*H)(mm)100*100*100(Or customize as your requirement) / 150*200*150(Or customize as your requirement) / 200*300*200(Or customize as your requirement) / 300*400*300(Or customize as your requirement)
External Size(W*D*H)(mm)350*470*570mm / 510*700*810mm / 550*700*895mm / 640*850*1050mm
Capacity(L)1 / 4.5 / 12 / 36
Heating ElementSiC heating rod
ThermocoupleS type
Chamber MaterialAlumina Ceramic fiber
ElectricityAC 220V, 50Hz/60Hz / AC 380V, 50Hz/60Hz
Max. Consumption2kW / 4kW / 9kW / 16kW
DatasheetAvailable on request

Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
