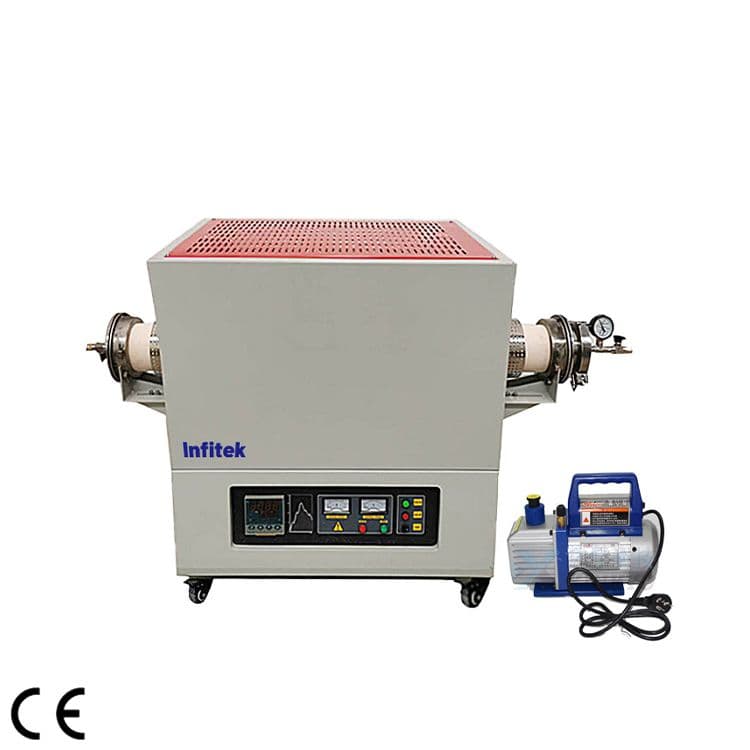

Muffle Furnace, 1700℃ High Temp, Tube/Horizontal Type, FNC-TB1700 Series
Category:Ovens, Furnaces & Baths

Muffle Furnace, 1700℃ High Temp, Tube/Horizontal Type, FNC-TB1700 Series

Infitek

  • Max. temperature: 1700℃ for short time
  • Continuous working temperature: ≤1550℃
  • Chamber material: Alumina ceramic fiber
  • Heating rate: 0~20℃/min (Suggestion 0~10℃/min)

Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.

Request a quote
WhatsAppViberCall
Technical parameters
BrandInfitek
CategoryOvens, Furnaces & Baths
ModelFNC-TB1700-A2 / FNC-TB1700-B2 / FNC-TB1700-C2 / FNC-TB1700-D2 / FNC-TB1700-A3 / FNC-TB1700-B3 / FNC-TB1700-C3 / FNC-TB1700-D3 / FNC-TB1700-A4 / FNC-TB1700-B4 / FNC-TB1700-C4 / FNC-TB1700-D4
TemperatureMax. Temp(℃) / 1700
Continuous Working Temp.(℃)≤1550
Heating Rate0~20℃/min (suggest to be 0~10℃/min)
Accuracy(℃)±1℃
Uniformity(℃)±5℃
Furnace tube materialCorundum tube
Total length of furnace tube800mm / 1000mm / 1200mm
Standard Heating zone length205mm / 350mm / 440mm
Standard Tube diameter∮40mm / ∮60mm / ∮80mm / ∮100mm
External Size(W*D*H)(mm)630*590*767mm / 724*590*807mm / 794*590*800mm
Heating ElementMoSi2 heating rod
ThermocoupleB type
Chamber MaterialAlumina ceramic fiber
ElectricityAC 220V, 50Hz/60Hz
DatasheetAvailable on request

Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
