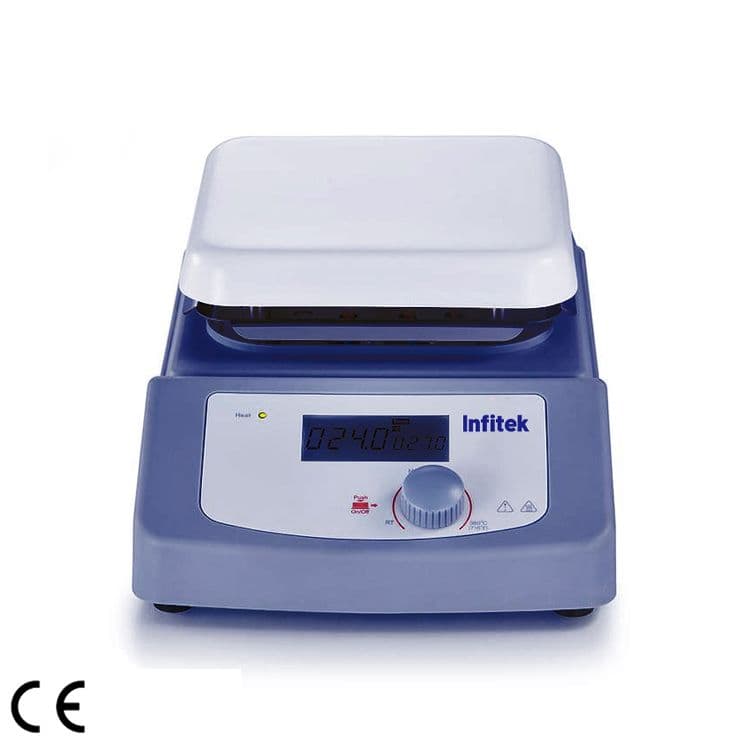

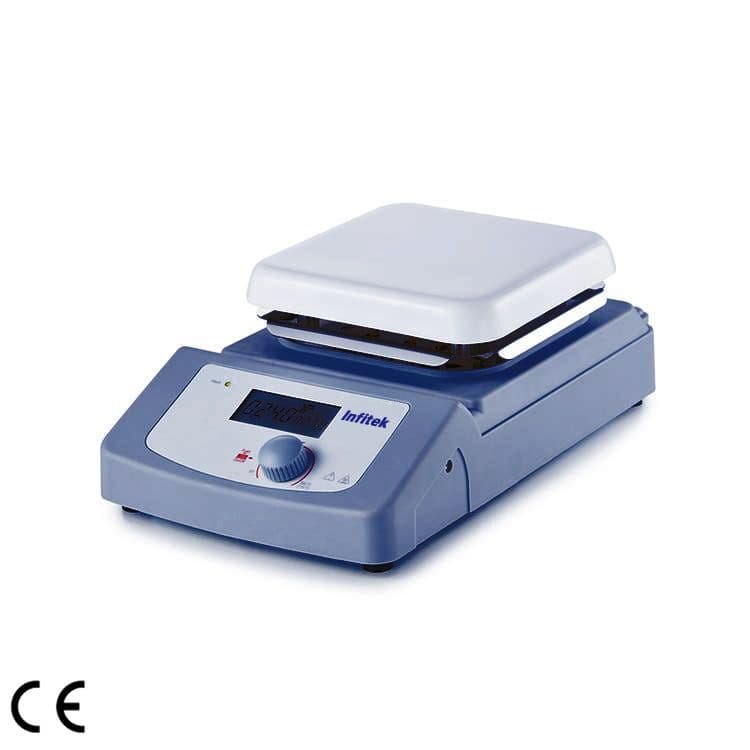

Hot plate, IP21 Class Ceramic Coating, HPT-380P
Category:Ovens, Furnaces & Baths

Hot plate, IP21 Class Ceramic Coating, HPT-380P

Infitek

  • Heating temperature range: Room temp. ±5℃-380℃
  • Over heat protection: 420℃
  • Temperature display accuracy: ±0.1℃
  • External temperature sensor: PT1000 (accuracy ±0.5℃)

Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.

Request a quote
WhatsAppViberCall
Technical parameters
BrandInfitek
CategoryOvens, Furnaces & Baths
SpecificationsHPT-380P
Work plate dimension140×140mm
Work plate materialAluminum over with ceramic coating
Temperature displayLCD
Heating temperature rangeRoom temp. ±5℃-380℃
Over heat protection420℃
Temperature display accuracy±0.1℃
External temperature sensorPT1000 (accuracy ±0.5℃)
Protection classIP21
Power510W
Heating output500W
Voltage100-120/200-240V,50/60Hz
Dimension [W×D×H]320×180×108mm
Weight2.2kg
Permissible ambient temperature and humidity5-40℃ 80%RH
DatasheetAvailable on request

Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
