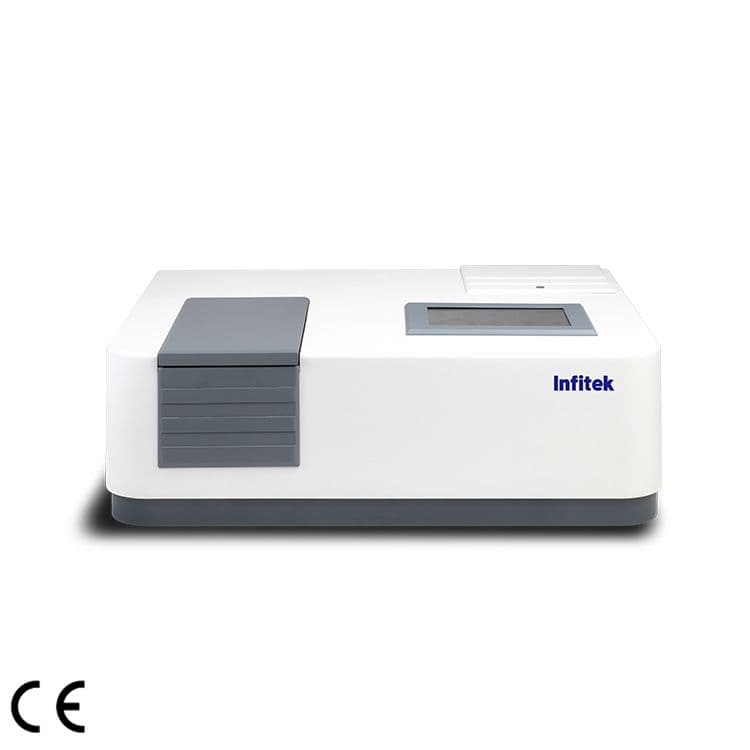

Infitek Double Beam UV VIS Spectrophotometer | High Precision

Infitek

SP-LUV7600 UV VIS Spectrophotometer offers ±0.3nm accuracy, ultra-low 0.03% stray light, and long-life Hamamatsu lamp for reliable lab analysis.

Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.

Technical parameters
Brand	Infitek
Category	Spectroscopy
Model	SP-LUV7600
Optical system	Double-beam System
Monochromator system	Czerny-Turner monochromator
Wavelength range	190nm~1100nm
Wavelength accuracy	±0.3nm
Wavelength reproducibility	≤0.1nm
Spectral bandwidth	0.5~6.0nm
Photometric accuracy	±0.002Abs(0~0.5Abs)、±0.004Abs(0.5~1.0Abs)、±0.3%T(0~100%T)
Photometric reproducibility	≤0.001Abs(0~0.5Abs)、≤0.002Abs(0.5~1.0Abs)、≤0.1%T(0~100%T)
Photometric range	-0.00~200.0(%T) -4.0~4.0(A)
Stray light	≤0.03%T(220nm,NaI;360nm,NaNO 2 )
Baseline flatness	±0.0008A
Baseline stability	≤0.0005Abs/h
Noise	≤0.1%T(100%T),≤0.05%T(0%T),≤±0.0005A/h(500nm,0Abs,2nm bandwidth)
Baseline Dark Noise	±0.1%T
Scaning speed	High / medium / low / very low
WL scan interval	0.05/0.1/0.2/0.5/1/2 nm
Grating	1200 lines / mm
Datasheet	Available on request

Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
