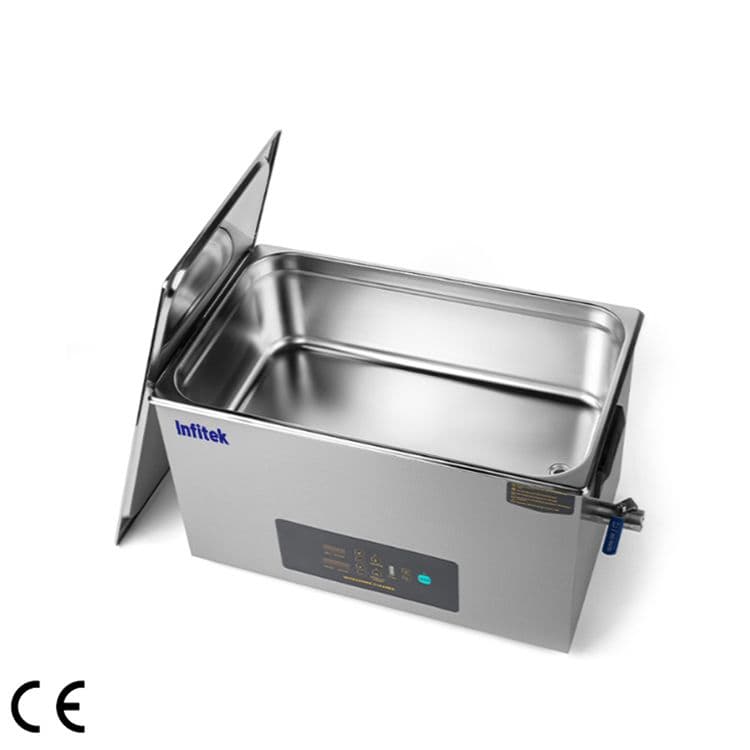

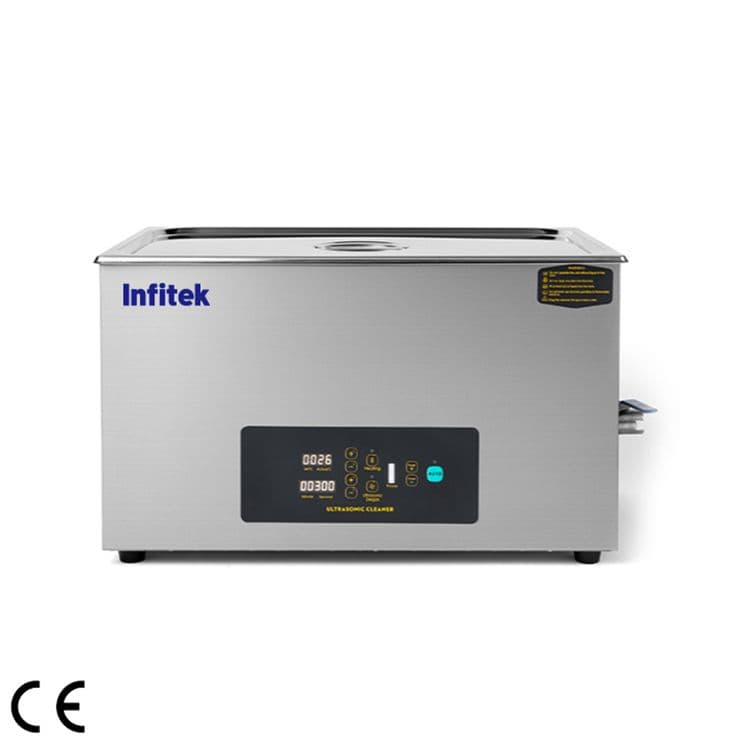

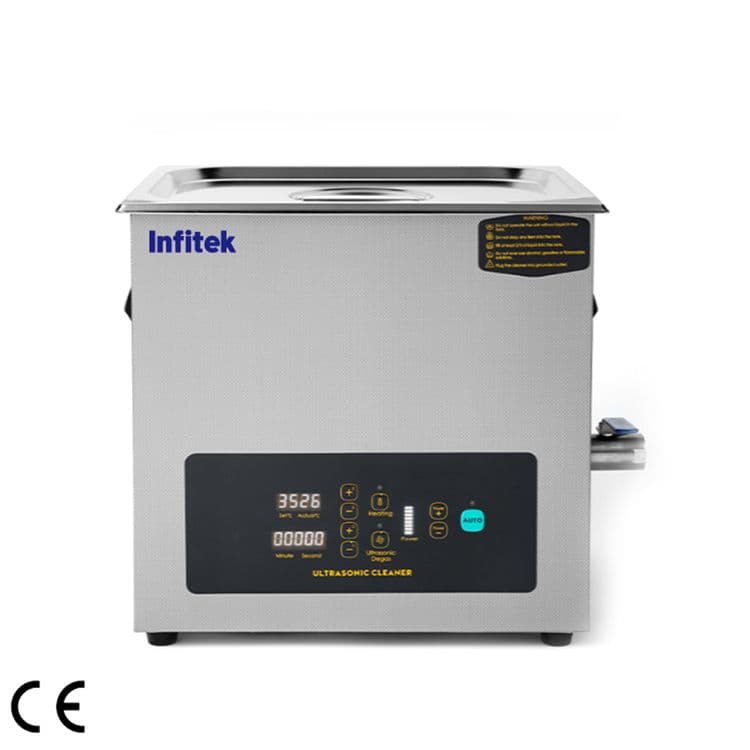

Ultrasonic Cleaner, USC-DP Series
Category:Sterilization & Cleaning

Ultrasonic Cleaner, USC-DP Series

Infitek

  • Capacity: 3L, 4L, 6L, 10L, 15L, 22.5L, 30L
  • Frequency: 40kHz
  • Temperature Control: RT.-80℃
  • Adjustable power for multi-purpose use
  • With power-adjustable dual-protection circuitry

Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.

Request a quote
WhatsAppViberCall
Technical parameters
BrandInfitek
CategorySterilization & Cleaning
ModelUSC0340DP / USC0440DP / USC0640DP / USC1040DP / USC1540DP / USC2240DP / USC3040DP
Power Supply220V/50Hz
Frequency (kHz)40
Ultrasonic Power (W)120 / 180 / 300 / 480 / 600 / 700
Capacity (L)3 / 4 / 6 / 10 / 15 / 22.5 / 30
Tank Dimensions (mm)240*140*100 / 300*155*100 / 300*155*150 / 300*240*150 / 330*300*150 / 500*300*150 / 500*300*200
Overall Dimensions (mm)265*165*230 / 400*240*315 / 450*255*380 / 450*340*380 / 450*390*395 / 655*420*450
Heating Power (W)200 / 300 / 400 / 500 / 600 / 800
Piezoelectric Variable Frequency TransducerCTV33, PZT (Lead Zirconate Titanate) Piezoelectric Ceramic
Temperature ControlRT.-80℃
Power Adjustment10%-100%
Timer0~480 min, Adjustable
Net Weight (kg)3.2 / 4.2 / 5.4 / 7.4 / 9.4 / 13.3 / 13.8
DatasheetAvailable on request

Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
