Stereo Microscope (Dissecting Microscope), MSC-ST45
Category:Microscopy

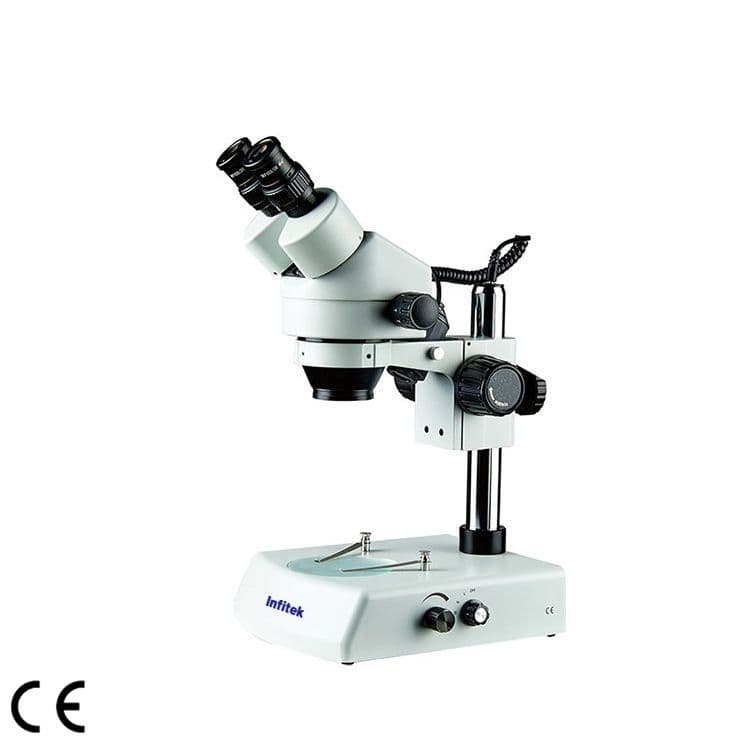

Stereo Microscope (Dissecting Microscope), MSC-ST45

Infitek

  • Binocular head
  • Wide Zoom Ratio: 6.4:1
  • Zoom objective: 7X-45X

Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.

Request a quote
WhatsAppViberCall
Technical parameters
BrandInfitek
CategoryMicroscopy
ModelMSC-ST45
OpticsFinite Distance Optical System
MagnificationZoom objective 7X-45X
Observation TubesInterpupillary distance adjustment: 54-76mm; Diopter adjustment: ±5 diopters
Viewing HeadBinocular head, inclined at 45°
Optical CoatingTransmittance ≥ 95%
EyepieceWF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Objective0.7X-4.5X stereo zoom; Zoom ratio:6.4:1
FocusingFocusing mount with vertical working distance 50mm
StandVertical post: 240mm ; Diameter: φ32mm; With φ95mm B/W plastic & Perspex plate and paired clips; Base size:200×255×60mm
IlluminationTransmitted and reflected LED illumination
C-Mount1X C-Mount; *0.5X C-Mount; *0.3X C-Mount
Electricity100-240V AC,50/60Hz
Package Dimension (W*D*H) (mm)510*280*390
Gross Weight (Kg)7
*OptionalMSC-ST45T: microscope camera (Standard imaging software) / Win 10 Pad / Digital display
DatasheetAvailable on request

Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
