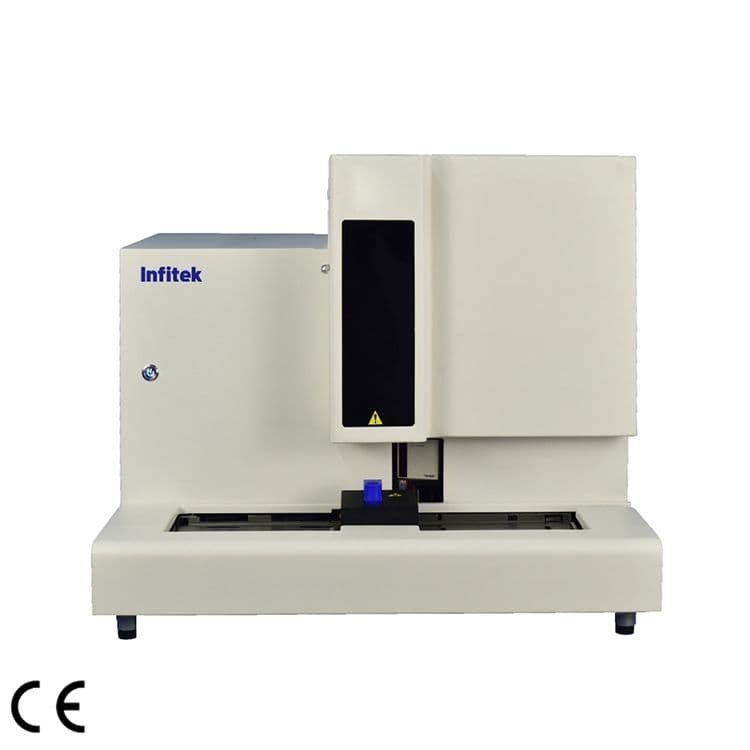

Fully Automatic Urine Analysis Workstation, UA-S3-120&UA-A3-240
Infitek
UA-S3-20&UA-A3-240 Fully Automatic Urine Analysis Workstation combines the urine chemistry analysis and the urine formed element detection together in one workstation. It makes the urine test efficient, fast and contamination-free.
- Test Speed:UA-S3-120:120 samples/hour;UA-A3-240:240 strips/hour
- Automatic urine dry chemical detection and microscopic examination
- Automatic focus calibration without focus fluid
Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.
| Brand | Infitek |
|---|---|
| Category | Clinical Analyzers |
| Model | UA-S3-120 |
| Test Parameters | Normal RBC, Standing RBC, Dysmorpuic RBC, Normal WBC, WBCC, Pus Cell, Hyaline Cast, Granular Cast,WBC Cast ,Squamous Epithelial Cell,Normal Epithelial Cell, Sperm, Calcium Oxalate Crystal, Bacteria,Yeast, Amorphous Urate |
| Test Principle | Flow cell digital imaging technology,medical image fusion technology,artificial intelligence identification technique |
| Channel | Four channels fixed flow counting cell |
| Sample Volume | Minimum volume:3mL,Aspiration volume:1mL |
| Test Speed | 120 samples/hour |
| Aspiration Volume | 1ml |
| Test Sensitivity | 5 cells/μL |
| Accuracy | >95% |
| Repeatability | CV<10% |
| Cross Contamination Rate | <0.05% |
| Data Storage | 200,000 |
| Report Mode | International general quantitative unit; unit /μL&HPF, complete and illustrated report, with urine chemistry test results and urine sediment test results |
| Environment | Temperature:15°C~35°C Optimum temperature: 20°C~25°C Relative humidity:≤75% |
| Electricity | AC220V±10% , 50Hz |
| Dimensions(L*W*H) | 660mm*440mm*570mm |
| N.W./G.W. | 37kg/95kg |
| Shipping Dimension(L*W*H) | 1150*760*770mm |
| Datasheet | Available on request |
Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
