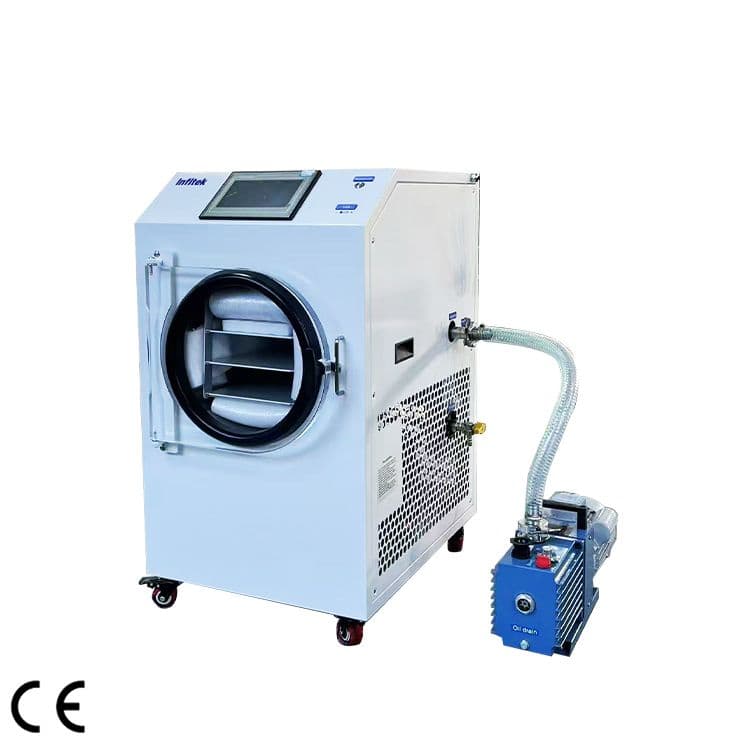

Freeze dryer, LYO40-ISF Series
Infitek
- Freeze drying area（m 2 ）: 0.12, 0.34, 0.55
- Final condenser temp: -40℃
- Ice condenser capacity (Kg/24h): 1-8
- Stable performance and low noise
- LCD control system
- Freeze-Drying Process Visualization
Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.
| Brand | Infitek |
|---|---|
| Category | Cold Storage |
| Model | LYO40-IS1F / LYO40-IS4F / LYO40-IS6F |
| Freeze Drying Area(m 2 ) | 0.12 / 0.34 / 0.55 |
| Tray(Qty) | 3 / 4 |
| Tray Dimensions(W*D)(mm) | 140* 275 / 200 * 425 / 330 *440 |
| Height Between Trays(mm) | 45 |
| Condenser Temperature (no-loading)(℃) | -40 |
| Vacuum Degree(no-loading) (Pa) | 15 |
| Ice Condenser Capacity (kg/24h) | 2 / 4 / 6 |
| Handling Capacity (kg/batch) | 1-2 / 4-6 / 6-8 |
| Refrigerant | CFC-free |
| Consumption(kW) | 0.75 / 1.1 / 2.3 |
| Electricity | AC220V/50Hz or AC110V/60Hz |
| External Dimensions(W*D*H)(mm) | 550*600*780 / 500*640*900 / 640*680*1180 |
| Package Dimension (W*D*H)(mm) | 710*600*1230 / 840*630*1270 / 820*800*1540 |
| Gross Weight(kg) | 118 / 140 / 200 |
| Datasheet | Available on request |
Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
