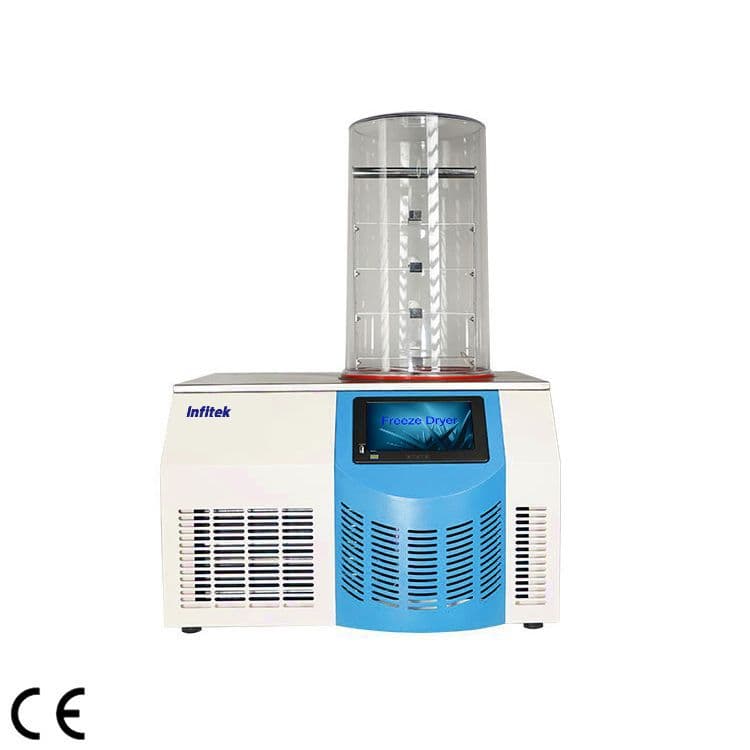

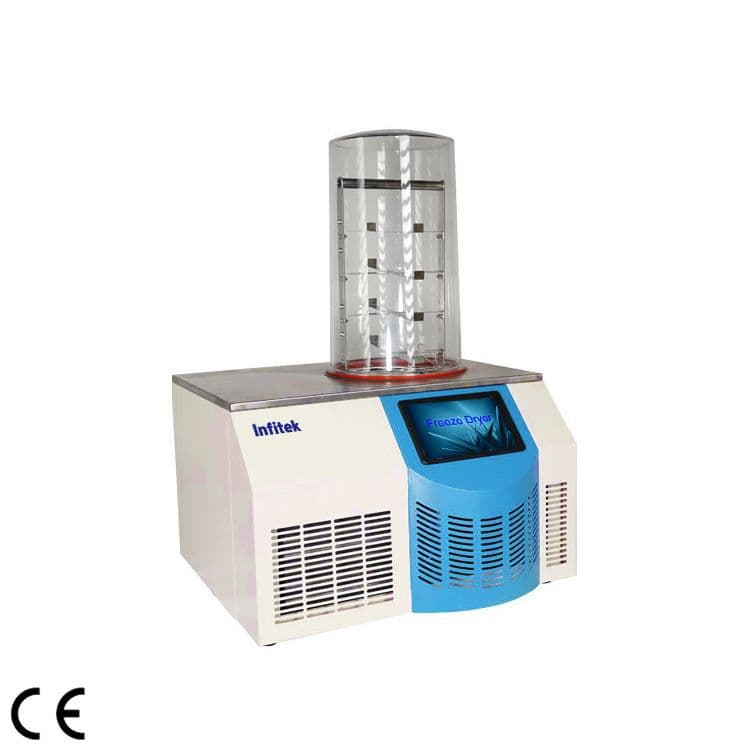

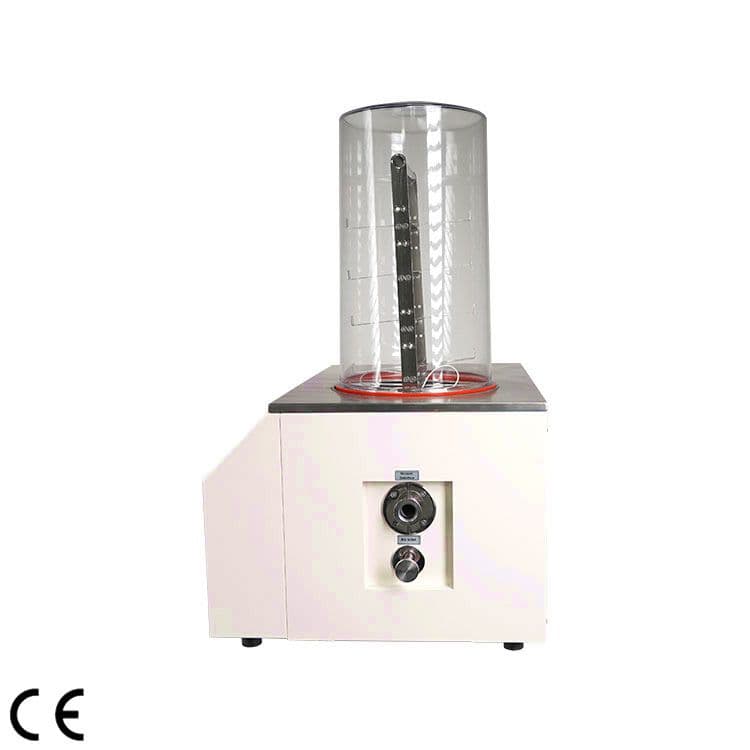

Benchtop Freeze Dryer, LYO60B Series
Infitek
LYO60B-1S Freeze Dryer use extremely cold temperatures (-60°C) and vacuum to remove moisture from food. Usually used to freeze-dry vaccines, bacteria, medicines, food, etc.
- Freeze drying area: 0.09m 2 , 0.12m 2
- Final condenser temp: -60℃
- Ice condenser capacity (Kg/24h): 3
- Material loading capacity(ml): 1200
- SECOP compressor
- Type: Standard chamber
Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.
| Brand | Infitek |
|---|---|
| Category | Cold Storage |
| Model | LYO60B-1S / LYO60B-1P / LYO60B-1T / LYO60B-1PT |
| Type | Standard chamber / Standard chamber with 8 port manifolds / Stoppering chamber / Stoppering chamber with 8 port manifolds |
| Freeze Drying Area(m 2 ) | 0.12 / 0.09 |
| Tray(Qty) | 4/6(Optional)pcs / 3pcs |
| Tray Dimensions(Diameter*H)(mm) | Φ200*20 |
| Height Between Trays(mm) | 76/50 / 70(average) |
| Condenser Temperature (℃) | -60 |
| Condenser Capacity (L) | 6.5 |
| Condenser Dimensions(Diameter*H)(mm) | Φ215*190 |
| Vacuum Degree(no-loading) (Pa) | ≤5 |
| Ice Condensing Capacity (kg/24h) | 3 |
| Loading Capacity/ Shelf (mL) | 300 |
| Total Loading Capacity of Material Tray (mL) | 1200 / 900 |
| Drying Chamber Dimensions(standard) | Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm |
| Total Qty. Of Vial Φ22 | 260 / 195 |
| Total Qty. Of Vial Φ16 | 480 / 360 |
| Total Qty. Of Vial Φ12 | 920 / 690 |
| Refrigerant | CFC-free |
| Datasheet | Available on request |
Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.
