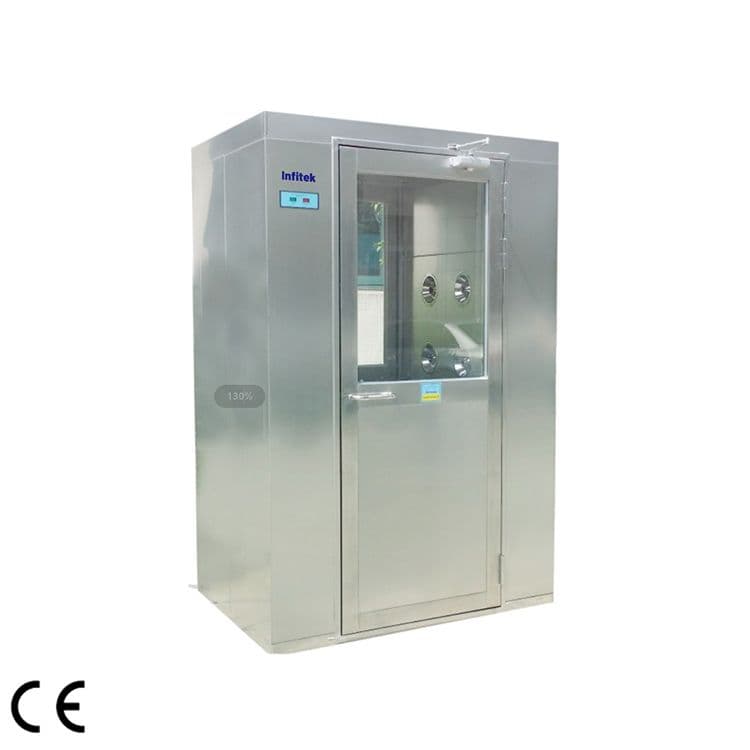

Air Shower, ASR-1400D

Infitek

Automatic control system
Humanized operation
High cleanliness and high wind speed
Can be customized

Pricing and availability are quoted per request. Ask about specifications, lead times, or tender documents.

Technical parameters
Brand	Infitek
Category	Biosafety & Clean Air
Product name	Air shower room
Overall material:	SUS304 stainless steel is used for the outer side and inner cavity of the box. Seamless welding and bending.
Filter efficiency	99.95% (sodium flame test), ≥ 0.5μm
Spray ball airflow velocity	≧24m/s
Spray ball diameter	30mm
Air shower time	0-99s
Spray ball material	Embedded, adjustable, high-quality stainless steel 304 mirror nozzle, can be adjusted universally to control the blowing part.
Circulating air volume	1500-2000m/h
Electricity	3N-380V–50Hz
Maximum power	About 2kW
Fan	Low noise centrifugal air shower fan
HEPA filter size	600600120 (High-quality high-efficiency filter with partition H13 without partition, using nano-polymer structure, for particle size ≧ 0.5μm) dust should be ≧ 99.95% (sodium flame method test)
Primary filter size	600*400 (Using high-quality primary G4, using nano-scale molecular structure, effectively filtering dust particles larger than 5μm)
Door opening method and material	Outward opening door； 304 stainless steel wire drawing square tube thickness 1.2mm, glass window above, stainless steel sealing plate below.
Blowing way	Induction showering, digital display, voice prompt system, automatic showering device, automatic blowing shower nozzles on both sides, so as to achieve the effect of dust removal, and return to the bottom return air outl
Lighting device	Ceiling embedded LED round ultra-thin energy-saving purification lamp
Circuit control	Microcomputer integrated control circuit system, infrared automatic induction, intelligent voice prompt electronic interlock. The door is opened —- people enter —- the door is closed —- the automatic induction fan starts
Door opening time	When the door is opened, the light is on, and when there is no material sensing, the automatic extinguishing time can be set (0-99s).
Datasheet	Available on request

Values separated by “/” refer to different models in the series. Confirm the exact configuration when requesting a quote.

Air Shower, ASR-1400D
